1989 Mustang LX Coupe

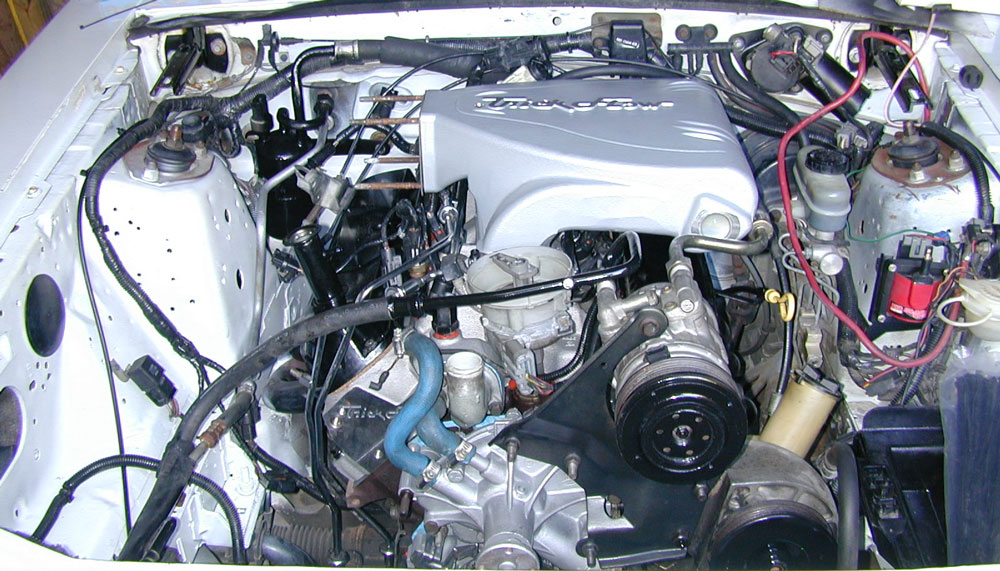

Stock car with GT-40 intake, 4.10 gear, and full length headers ran around 104 MPH average in 1/4 mile. This was my baseline.

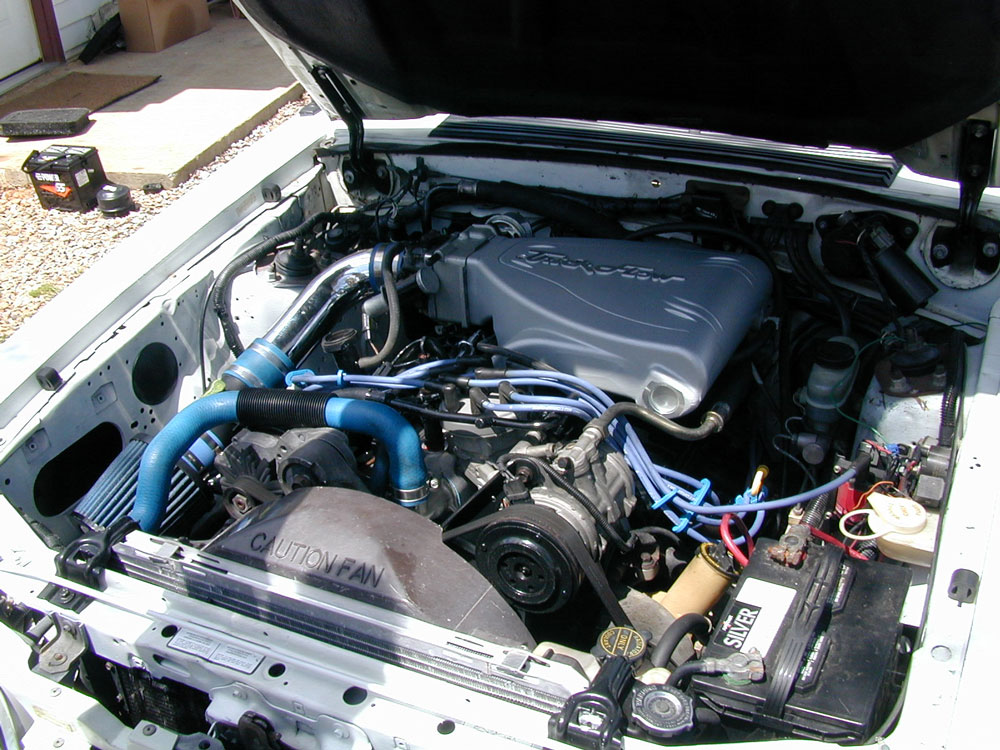

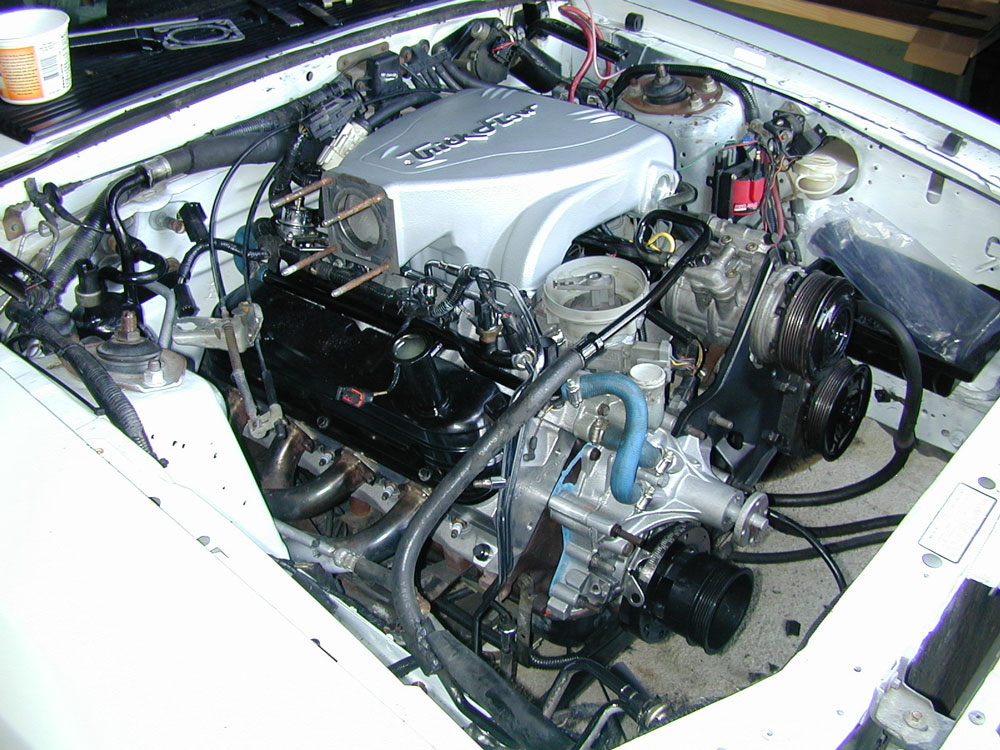

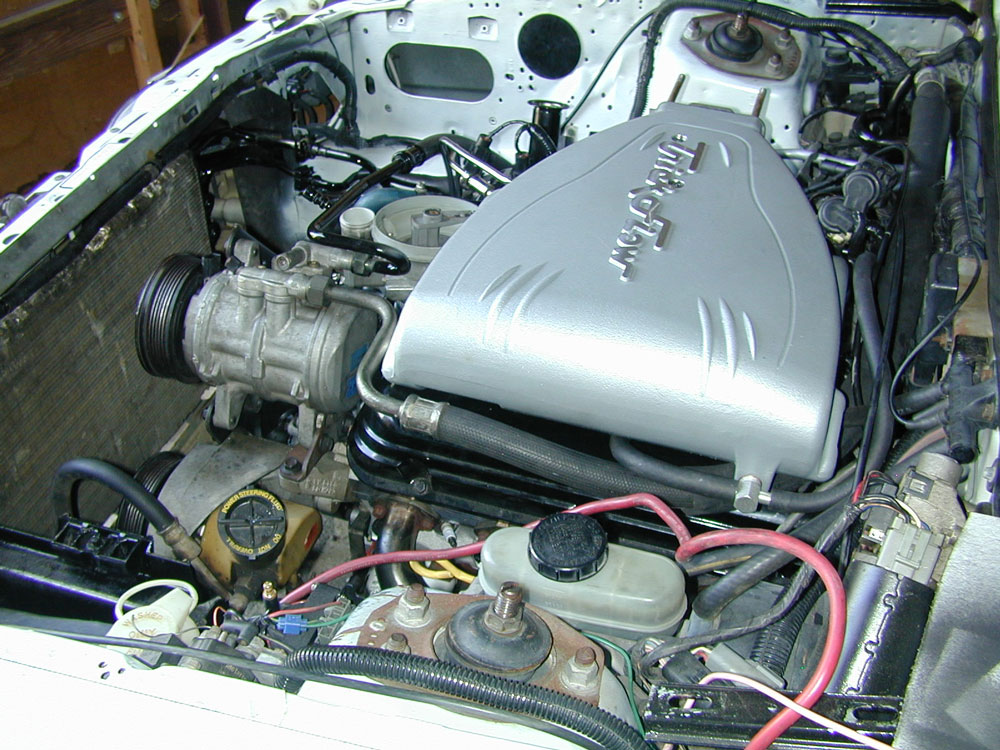

First change was cylinder head and camshaft change in 1989 Mustang LX. I added a Ford Motorsport F303 camshaft and TFS Twisted Wedge cylinder heads and intake.

With these changes the car made about 330 rear wheel horsepower, and still managed 18 MPG average mileage. 1/4 mile MPH was now around 110 MPH.

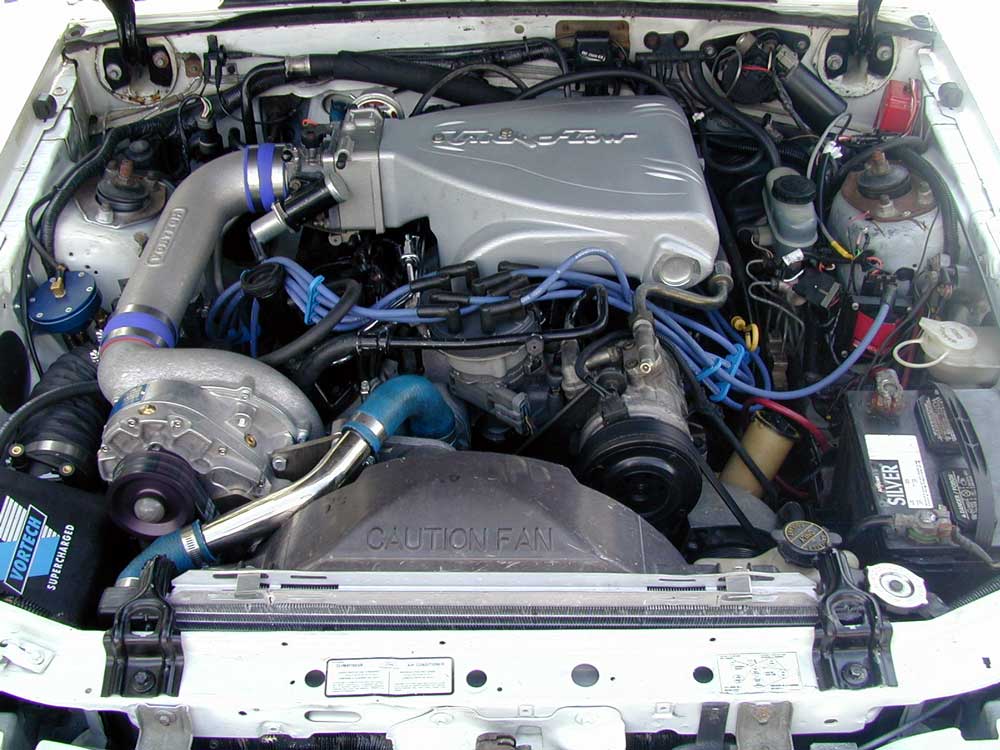

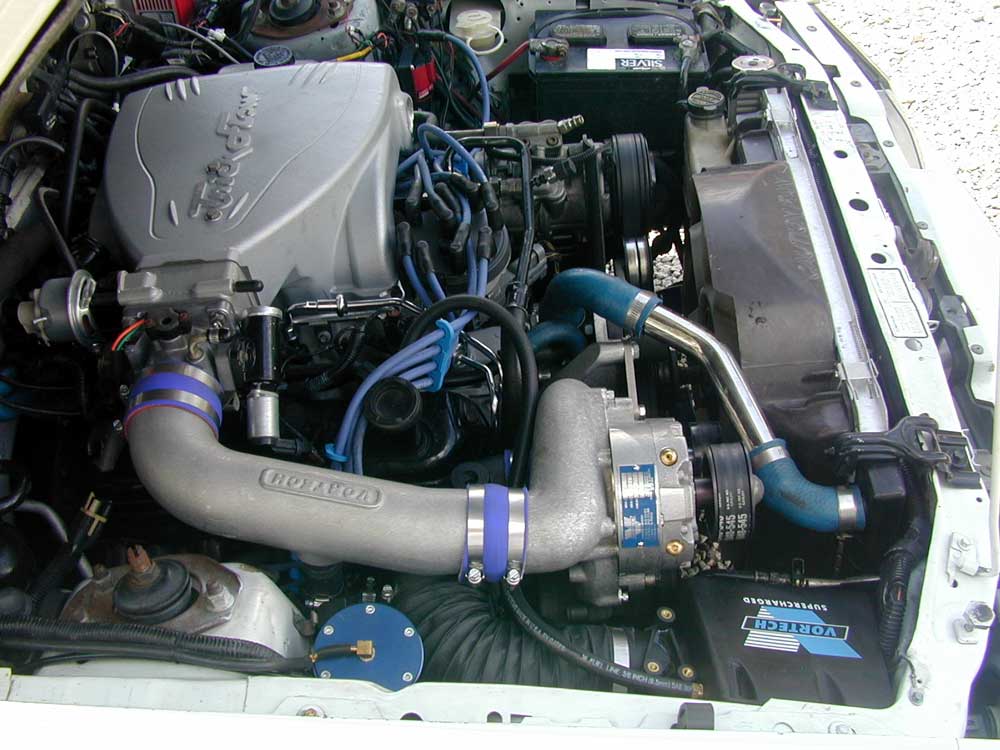

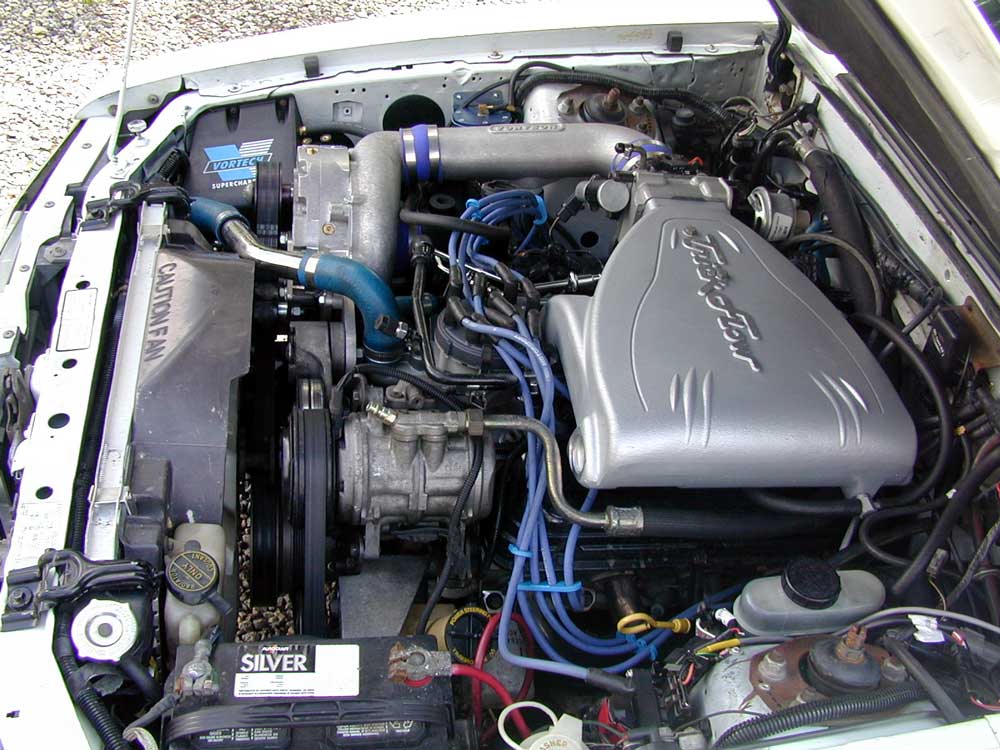

Next stage was adding a supercharger. I installed a Vortech supercharger but because of the stock block and reciprocating assembly I kept boost to 8 pounds. I also made the following changes:

Added boost gauge

Added 30 lb/hr injectors

Added Tweecer to read and adjust computer

Added Innovate Oxygen sensor and data recorder to read and monitor air/fuel ratio. This ensures the engine does not get lean and burn pistons or break parts from detonating from lean mixture under boost.

No 1/4 mile speed or horsepower yet, but it should be around 450-500 rear wheel horsepower based on the boost and previous power levels.

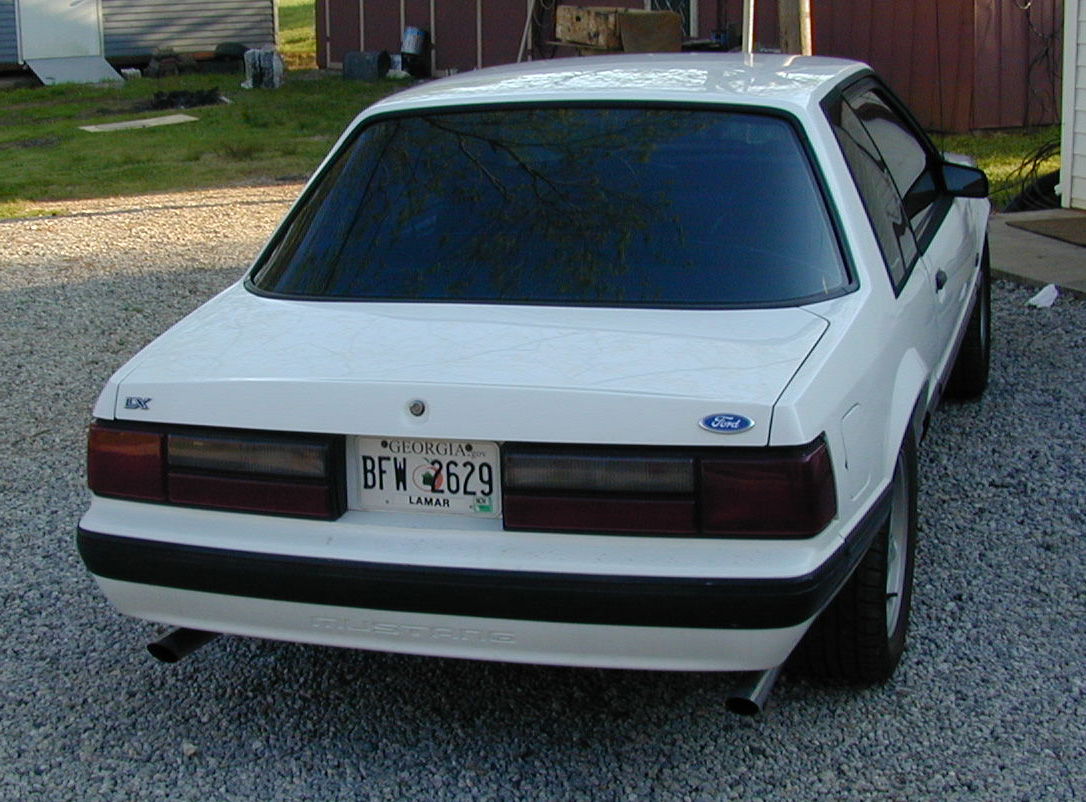

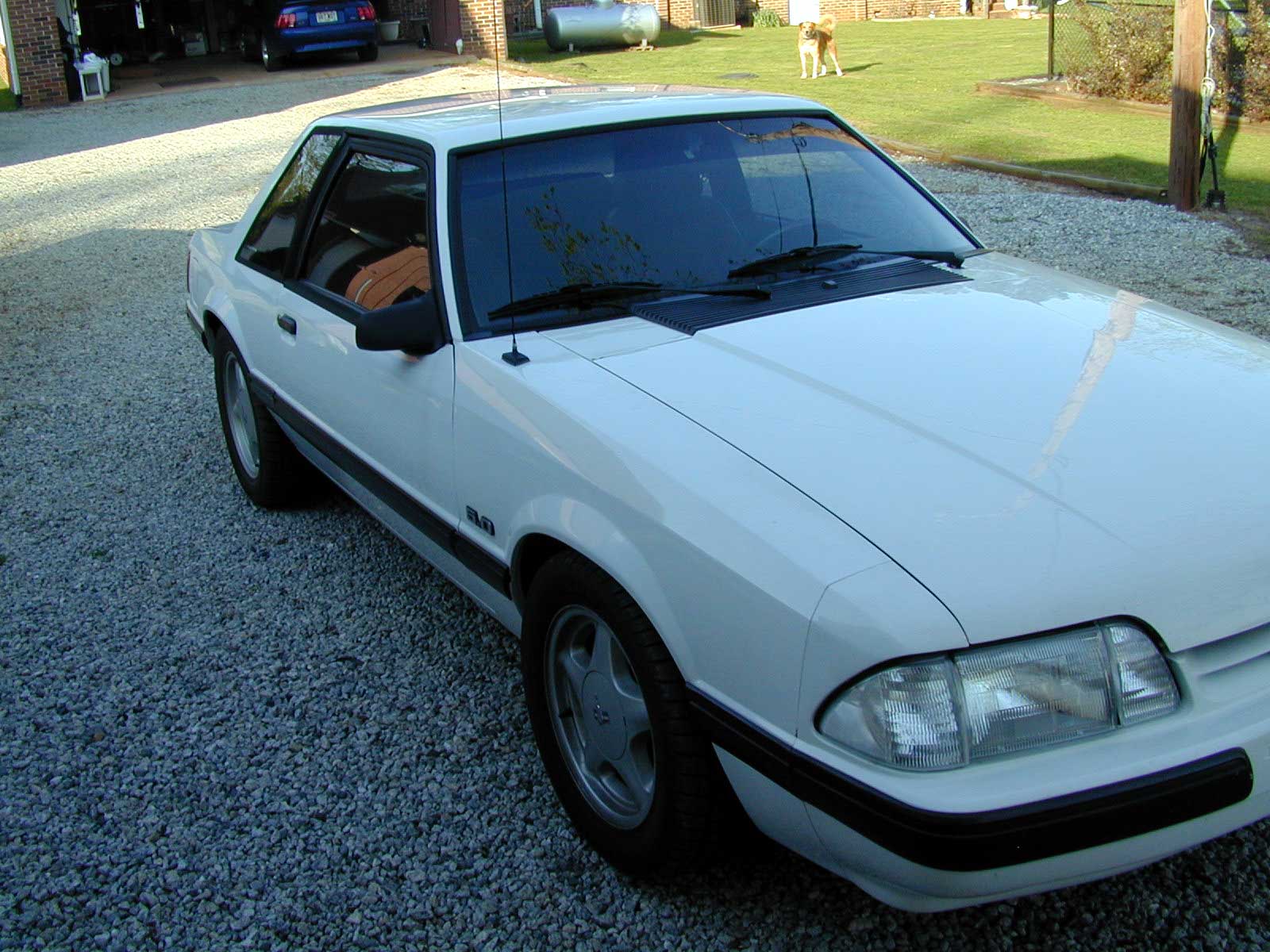

This is how the car looks from the outside. It is built to look totally stock.....

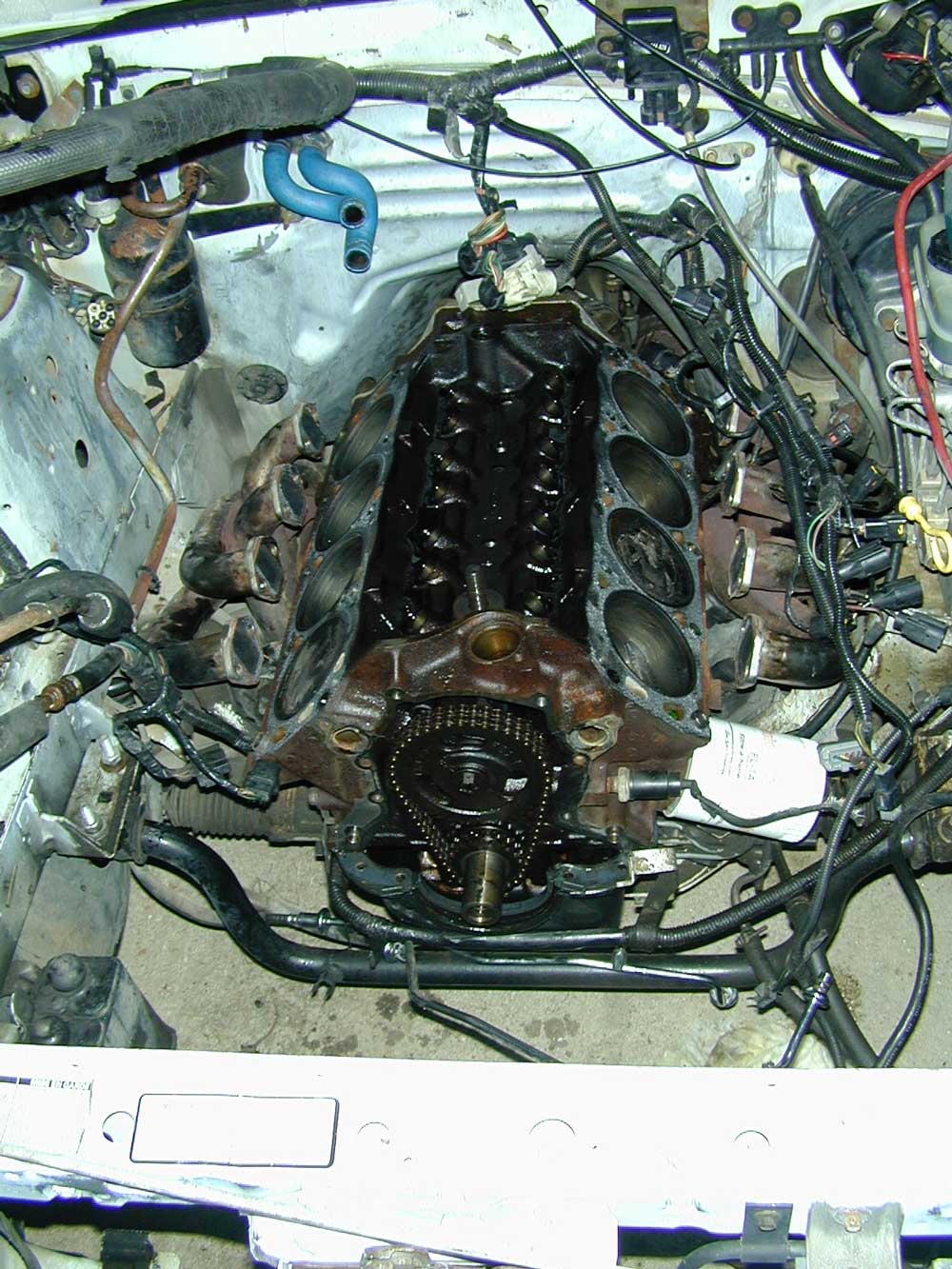

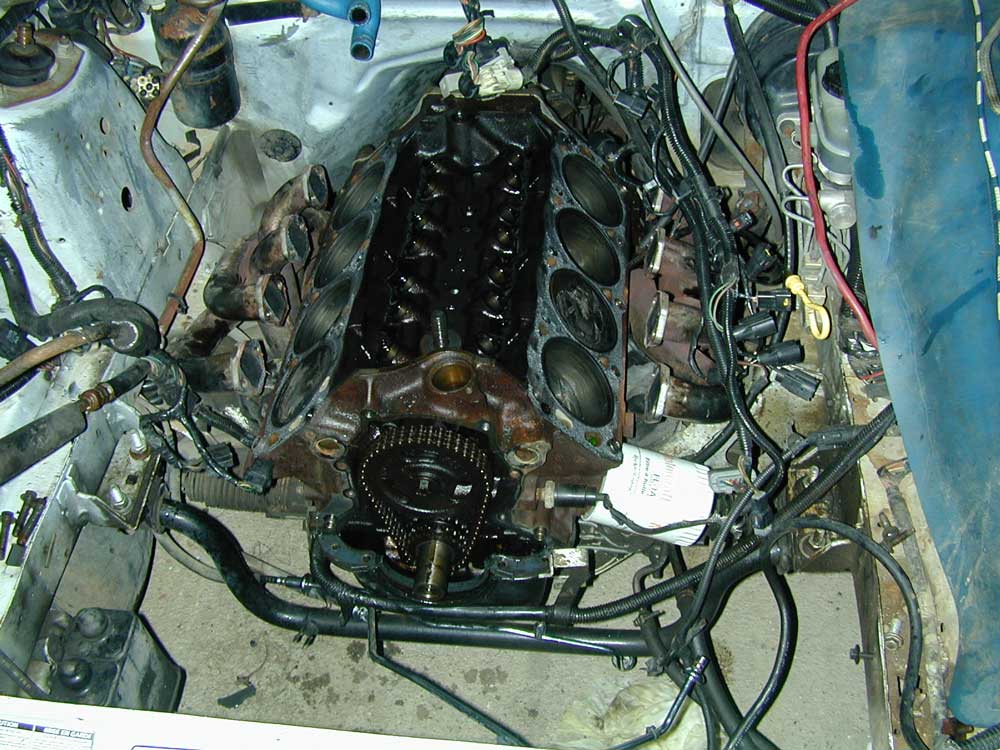

My next mechanical step is to replace any part that breaks with a bigger heavier component. The engine naturally failed, so I have just completed a 363 cubic inch Dart block 302 style motor. The engine is 4.125 bore by 3.6 inch stroke and 8.5:1 compression.

This engine has all the good parts:

Forged steel crank

H-beam rods

Custom blower pistons

Dart (world products) 4-bolt mains block

Competition Cam roller camshaft

This O-ringed engine will be fitted with new TFS twisted wedge custom ported heads, better ported race intake, and higher output blower. It will make around 800 HP with normal street boost, and should produce up to 1200 HP or more with high boost. This project is taking a little longer than expected because everything from fuel tank to radiator needs upgraded to handle the engine.
