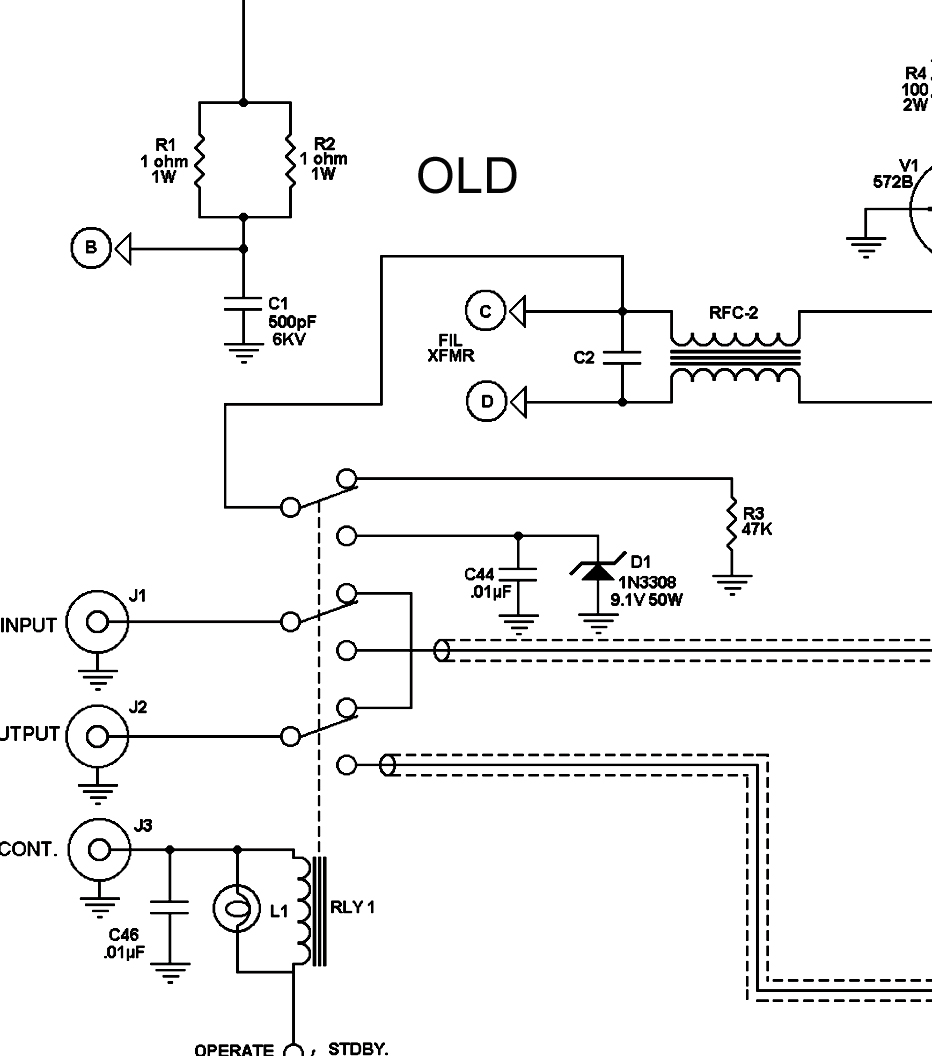

clipperton original filament and relay











The Clipperton originally feeds the cathode from one side of the filament transformer at wire C. This causes hum in the signal.

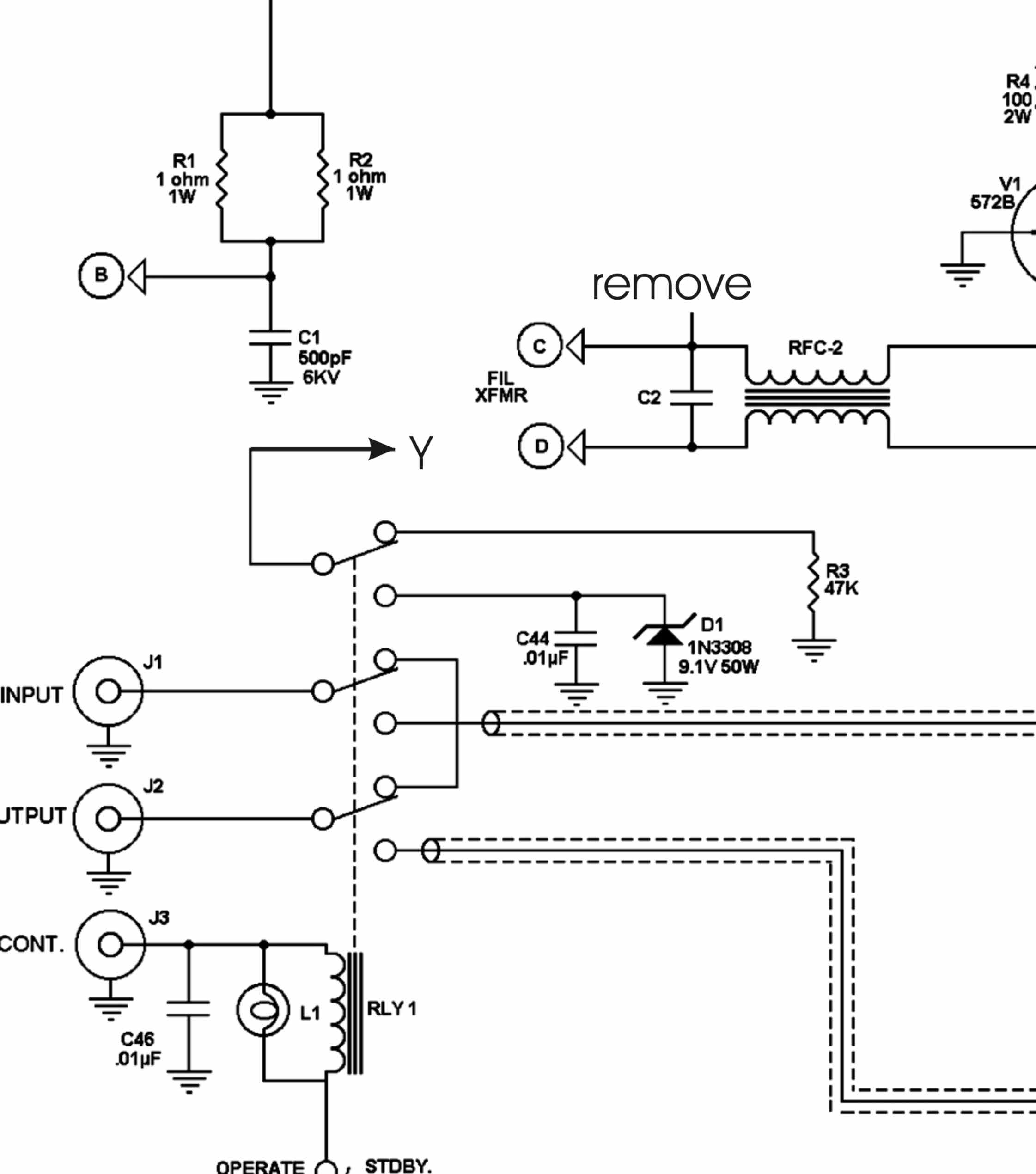

Modified filament













Remove the relay wire to point C and rewire to either of the circuits shown below:
