Test page. This is the pattern of small phased loops edited in Komposer.

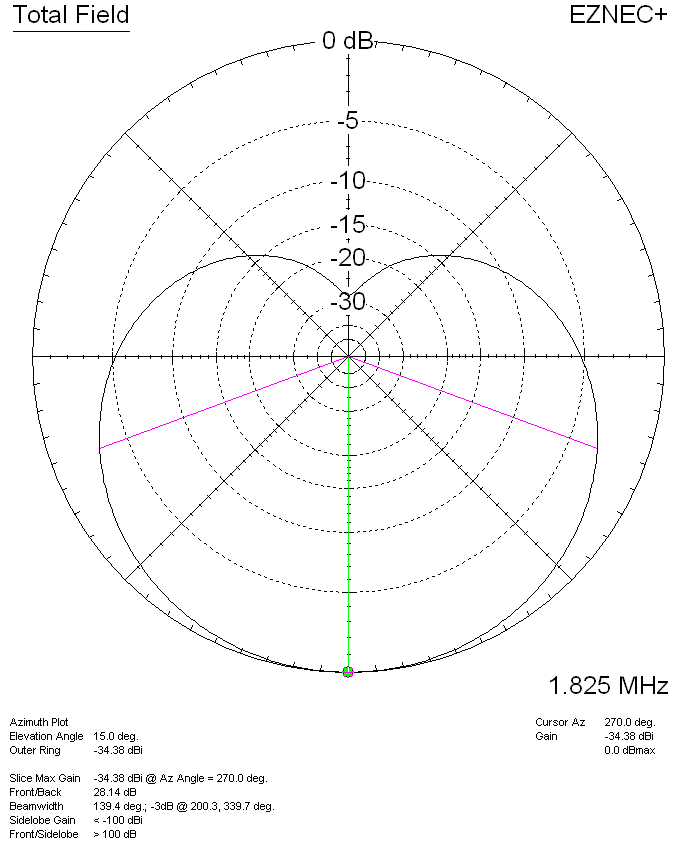

Base single loop, properly terminated.

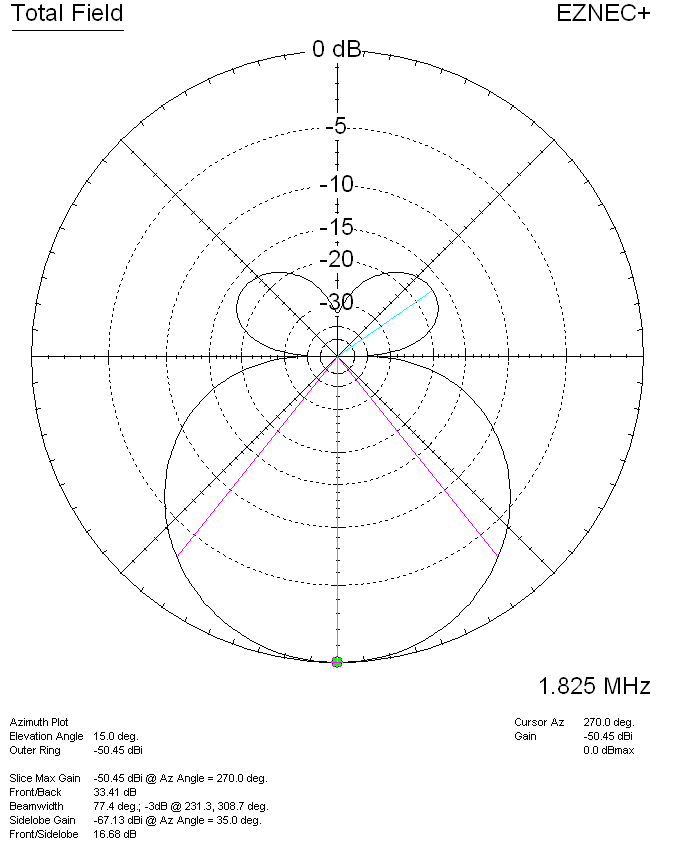

Out of phase. 13.2 dB sensitivity loss but substantial pattern improvement

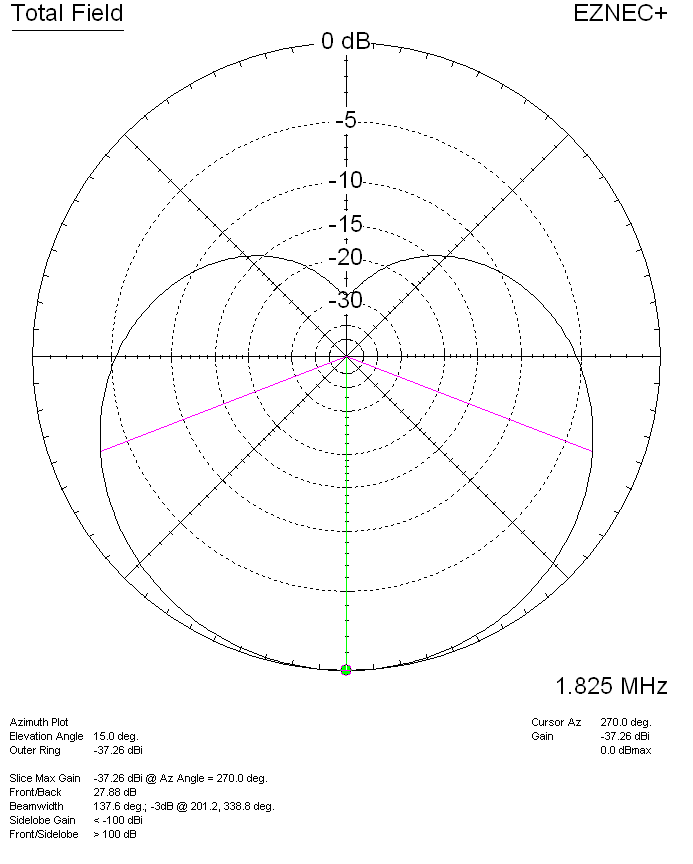

In phase, +3dB gain but not pattern change.

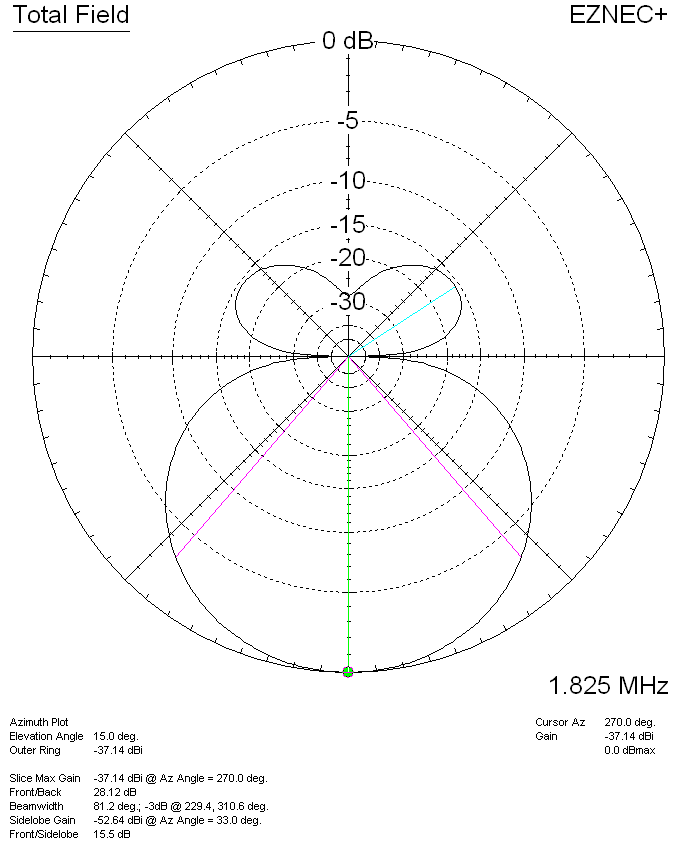

Now for 90 degree spacing and 180 shift:
