For the past 40 years, I have designed products that consume, produce, or measure significant current. These products are used on high voltage power mains and low voltage systems. I also designed (and was responsible for production of) vehicle gauges and test equipment, including instrumentation (meters) in products marketed by national suppliers. Our instrumentation customers included Snap On, Mac Tools, Sears, and others. You can skip all the technical stuff in the beginning, and just move on to battery wiring or to trunk mounted battery.



The only connection to a battery post negative should be to another battery negative, the vehicle chassis, and/or the engine block.

The battery negative post terminal, as well as the battery negative cable or lug, should never connect to any type of device or accessory equipment unless that device is fully ground isolated on the cabinet and on all ports.

If the negative power feed wire floats from all exposed conductive cabinet or external wiring paths, a fused direct negative should be safe.

Battery Grounds, Accessory Grounds, and Equipment Grounds

The most misunderstood automotive wiring connections are connections to the battery negative and ground loops. The Negative Lead  page goes into details. Please read the Negative Lead page before connecting anything to a battery negative post or battery negative terminal!





Directly from European wiring standards and regulations for vehicular ancillary equipment:

4.6.4. Negative Feed Connection

In the case of negative earth return vehicles, the negative power line should not be fused. It should be connected to the vehicle body as close as practical to the point at which the battery-to-body connection is made. Do not connect the negative power line directly to the battery.

For heavy commercial vehicles (>7.5Tonne GVW) only, and those vehicles with tilting cabs where the cab may be isolated from the chassis by rubber mountings, a ground point is provided by the vehicle manufacturer within the cab to provide battery to cab grounding. Generally this is located within the main fuse box. It is recommended that this point be used for installations in this instance.

With certain equipment it may be necessary to connect the negative supply line to a local earth point. In this case an existing vehicle earth point must be used.



Technical Section Follows



Conventional meters cannot be used to verify resistance of low resistance leads, especially starter or alternator leads

Occasionally, we find common test meters being used to measure resistance in modest to high current wires. A regular multimeter can determine if a lead has no connection at all, it can check some parts or components, and it can indicate conductor resistances over nce connection accurately . A regular meter can be used to find some (but not all) bad connections, if the connections are bad enough.

A regular multimeter does not have the resolution to measure resistance in connections that cause slow cranking or slow charging. This is because a resistance that causes slow cranking or charging is much less than one ohm! As little as .05 ohms resistance will drop ten volts or more to a starter, or pull an alternator below the required current for fast charging (it would still slow-charge just fine). The meter will not measure low resistances, using a regular meter to measure low resistance wiring is like using a tape measure to set valve lash.

There are two ways to find poor connections in high current leads.

One is by inspection, using our eyes and hands. Frayed or broken strands, loose crimps, corrosion and loose fasteners can show up in visual inspection.

The second method is by measuring voltages while that area of the system is operating, and looking at voltage across various points. This is often the best method to trace problems in leads or connections.

Conductor Length, Conductor Gauge, and Resistance (background)

All conductors have resistance to electrical current flow. Resistance in conductors and connections is actually the ONLY thing that limits current flow through wires. Conductor resistance causes voltage drop along the wire's length. Current through that resistance, and the resulting voltage drop across that resistance, is actually what determines heating from power loss. Resistance wastes power. Resistance, voltage drop, heating, and current are all closely tied together with unbreakable electrical rules. (There is something else that limits current, reactance. Reactance is like resistance, but reactance limits current without heating. Reactance only applies to rapidly changing currents. Steady currents ware not affected by reactances.)

To keep things simple, let's consider steady slowly-changing loads like sensors, starters, lights, and other slowly-changing or steady dc loads. In the context of steady or slowly-changing direct current systems, we can ignore reactances. (We cannot always ignore reactances when dealing with sharp pulses or rapidly changing voltages, such as pulsed fuel injectors or ignition system pulses.)

This means in DC systems such as automotive wiring, or in normal home powerline frequency AC circuits, we have two things to worry about:

DC resistance is directly proportional to conductor length for a given conductor cross sectional area (conductor size) and material, and inversely proportional to conductor cross sectional area for a given length and material. A ten-foot long  #14 gauge copper wire, with a certain current, will drop ten times the voltage as an identical one-foot long wire. This is why long wires sometimes have to be sized for voltage drop, and not current rating.

Voltage drop along a conductor is always current through the conductor times the conductor path resistance. A longer path length through a conductor of a given size and material, the more resistance and voltage loss that path will have. More current flowing through a certain resistance produces more voltage drop and more heat. A smaller cross section conductor creates more resistance, and that results in more voltage drop and heat.

People like to tell us electricity is like water in a pipe, but that really is not a good picture to have. Here is why...

People sometimes say wires are like pipes. This implies the inside dimension controls the amount of current flow, just like water flow through a pipe. This just isn't true.

If we have a certain water pressure, a small "jet" or nozzle, or a small section of pipe of almost any length, will limit the maximum possible liquid volume that can  flow. This is NOT true with electricity! With electricity, any amount of current can flow through a thin wire unless the wire overheats, or the voltage drop becomes too much to run something properly. Any size wire can handle any current, up to the point where the wire overheats and melts, or the voltage drop does not allow the system to function.

Things limiting the amount of current a given wire can carry are:

Current in a short length wire or conductor, if system voltage is high enough, is limited by the safe wire temperature rise. A small size wire will not restrict current flow, like a pipe does with water flow. Here is an example:

A number 10 AWG copper wire has about .001 ohms resistance per foot of length. If we run 100 amperes through one foot of #10 AWG, voltage drop would be (100 amps*.001 ohms =) 0.1 volts.  The heat, however, would be 0.1 volts times 100 amps, or 10 watts. This would make the 1 foot of wire pretty hot after a short amount of time, even though voltage drop of 1/10th volt is barely noticeable. This is actually how fuse links work. The short length of small gauge wire reaches a fusing current, and the conductor melts.

Typical Fusing or melting currents of AWG copper wire, room temperature, no forced airflow

gauge fusing current amperes   gauge fusing current amperes
20 58.4   12 235  (typ alternator)
18 82.9  (typ accessory feed)   10 333
16 117   8 472 (typ battery)
14 166   6 668

The largest permissible fuse, breaker, or fuse link allowed is determined by the wire size and temperature rating...but we should never fuse at more than twice the highest average or steady load current.

Let's say we are running a giant 12 volt 1200 watt spotlight. The spotlight would have 12volts^2 / 1200watts = 0.12 ohms resistance. With 12 volts at the light, the spotlight current would be 12/.12 = 100 amperes. Our #10 wire would add 0.001 ohms, reducing voltage by 0.1 volts. This would make load current 12/.1201 ohms = 99.17 amperes. Load voltage would now be 11.9 volts. Load power would be 11.9*99.17 = 1180 watts, instead of 1200 watts. This is hardly any change in the spotlight performance, even though the spotlight current passes through a very small wire.

That certainly would not be true with water. If we passed water from a large hose through a section of very tiny pipe, we would have almost no water flow at all!

We can see wire size does not limit current or power unless wire length becomes so long the wire's resistance is a significant percentage of the load resistance value, or the wire melts. A hose or pipe, on the other hand, limits liquid flow based on size, shape, and pressure differential from inlet to outlet.

Shorter Wires are normally Heat Limited

This is because the total wire resistance and current determine voltage drop. Your house wiring, for example, is normally sized by the heat that can be safely tolerated. Electricians and building codes use a certain wire size for a certain current with little regard to voltage drop. This is because they assume the wire is a reasonable length, and the real worry becomes preventing house fires. At 240 volts, there would be little worry about loss of five volts through a long wire's resistance. The length would spread heat around, and voltage drop is not a significant percentage (about 2%) of total voltage for most household loads.

In some cases, especially where voltage is lower or wire length is longer, voltage drop can be a significant problem. Vehicle voltage, for example, is only 12.6 volts when running modest loads from a fully charged lead-acid battery. While a good alternator is charging, 12V vehicle voltage can be slightly over 14 volts. If we allowed the same voltage drop as house wiring by setting wire size with wire tables used for house wiring (by safe enclosed wall heat), we can easily run into situations where voltage drop is excessive. If the resistance of a wire or conductor dropped five volts in a 14-volt system (a 36% drop), the end result would almost always be devastating.

Because automotive voltage is low, we must pay attention to both heat and voltage drop in high current wiring. We also should route wires for the shortest possible length that looks good and is safe.

Some articles on Internet claim a vehicle ground should involve a large copper buss connection, or the frame. While well-intentioned and laced with true statements, the overall conclusion and some of the wisdom is not true. The length of a ground stud or bolt is so short that resistance and voltage drop does not matter very much. The biggest issue is having a good, reliable, corrosion-free connection to the body shell and ground lug. If the connection stud were three feet long, it would be another story. If you doubt this, look at the bolt size in modern car batteries. Current comes out through a fairly small terminal and bolt, neither of which is generally copper. As a matter of fact, ALL of the connections in the battery are lead, which is a terrible conductor! Why would any logical person go through the bother of attaching a large surface area, short length, copper ground plate to the body shell when the battery terminals and connections are lead?

It is easy to make insignificant things a worry, the old "making a mountain from a mole hill" adage. Ground stud or ground conductor length is usually so short and so wide or thick that the material resistance in the ground stud is one of the least significant factors. Corrosion and clamping pressure is much more of a factor than use of low resistance materials like copper. While copper terminals can be good in some applications, like insulated power entrance bolts to very high current devices like starting relays, starters, or alternators; copper studs or copper buss bars are normally a very poor general application choice for body-to-lug or frame-to-lug bolted connections.

To avoid galvanic corrosion, we do not want two metals with significantly different electro-chemical rankings in contact in the presence of salt and moisture. Materials choice varies with the environment and application, and is far more than material resistivity alone! Bare copper is generally a poor choice for a bolted ground connection point in a car. Copper in direct pressure contact with steel will erode the steel, and form insulating oxide layers. We are much better off using proper stainless or galvanized fasteners, even though material resistivity is higher.

For a good ground connection, use a fastener that:

Avoid soft fasteners, fasteners that corrode easily, or fasteners that cause the vehicle metal to corrode. This rules out copper or aluminum in direct contact with a steel or galvanized steel body.

Heat also causes resistance to increase, but this is normally a small or insignificant change in proper sized and length wires. The change, near room temperature, is about 1/2% per degree C. Hotter wires have higher resistance, which is another reason to oversize long wires. Heat related changes are negligible on short length wires, because they do not have that much resistance to start with. Increasing almost nothing by a few percent is still nothing.

Longer Wires to Voltage Sensitive Devices are Normally Voltage Drop Limited

Alternators and starters are usually the two things with the highest current. An alternator might be required to output 100-150 amperes (which is always more than 2-3 horsepower load on the drive belt) and a starter might require as much as 200-300 amperes. High current means we have to be very careful about wire length and connection quality.

An operating vehicle normally gets 100% of its electrical energy from the alternator. The battery primarily supplies cranking power, but also provides an increasing share of electrical power as alternator output falls below 13 volts or so. Excessive voltage drop in alternator leads and connections, a slow spinning  alternator, inadequately sized, or defective alternators make vehicles battery dependent. At the same time excessive alternator lead resistance makes the vehicle battery dependent, excessive alternator lead resistance slows battery charging.  The alternator should turn at maximum permissible RPM at maximum engine RPM.

The alternator should feed the power distribution point of the electrical system. This is why factory alternator leads almost always  run to the common point where electrical feeds branch, and NOT to the battery post.

Long battery leads can cause slow cranking when hot. Long battery leads can also ruin dynamic regulation of alternator voltage, and slow battery charging. When battery leads are long, they should not be sized for current. Long leads should be sized for voltage drop. Long battery leads almost always have to be significantly oversized. Number 4 might be fine for a six-foot starter lead, but it is almost always too small for a trunk mounted battery.

Running a ground lead from the engine back to a trunk mounted battery is a common battery wiring mistakes. This adds unnecessary resistance. The same is true for running the alternator output wire back to a trunk mounted battery.

Voltage drop for each 10 feet of wire (ONE direction) at normal starter currents:

Gauge Resistance Voltage drop @200 amps Percentage loss (of 12.6V) Percentage loss (of 10V) Size recommended  for distance**
0 ga .00099 ohm 0.2 volts 1.6% 2% 12ft
1* .00124 0.248 2% 2.5% 10ft
2 .00156 0.312 2.5% 3.1% 8.5ft
4 .00249 0.5 4% 5% 6 ft
6 .00395 0.79 6.25% 8% fuse link only

*also typical maximum resistance from Ford Mustang trunk pan to inner fender, with clean tightly bolted connections. Most of the chassis resistance loss is in the sheet metal near the bolted connections, so front to back connection distance makes only very small changes in resistance

** for negligible hot or extreme cold cranking speed change with good battery and starter, assuming good connections and ground return

Connection and ground return resistances add to this. If you have #2 fifteen feet long, the wire loss would typically be about 5%. The return loss would be about 2%. You would lose about 7-8% total of battery voltage, plus connection losses. This will noticeably slow a hot starter, but should not cause start problems with a good battery and starter.



Frame or Body Connection?

In a vehicle, the steel shell is almost always better than a sub-frame or frame connection point. A typical body shell has large stamped areas. These areas are normally welded at multiple points to surrounding panels. Body panels and the body shell have a very large surface area. The large surface area provides solid electrical connections. Because area is so wide, even a thin panel has a very large cross-sectional area.

Sometimes frames are isolated from the body by rubber mounts. My F-250 truck has virtually no cab-to-frame or fender-to-frame electrical bonding, so the wide body shell does not contribute to electrical ground conduction cross section.

In the case of a unibody, the frame is an isolated stamped structure. It is spot welded to the body shell at a few dozen points. The (sub)frame is probably OK, but it is certainly no better than any other panel. There is no reason to use the (sub)frame on a unibody.

If the body shell is a non-conductive material like plastic, carbon fiber, or fiberglass, use the metal frame or a very large auxiliary ground buss conductor.

Avoid ground connections through bolt-on or hinged sheet metal, such as fenders, hoods, trunks, and doors.

Unless you have a fiberglass or non-conductive body shell, or have something isolated on rubber mounts like a truck, don't waste time and material running extra ground lead length to a frame or cage. Such connections, because of the extra path length, usually have more resistance than short direct connections to the shell. Try to use radiator supports, inner fenders, firewalls, floors, and other large permanently integrated parts of the vehicle that are close to the thing you want to ground.



Example of ground path resistance:

Resistance of any uniform conductor is inversely proportional to cross sectional area and directly proportional to resistivity and length. In simple words, if we double the cross sectional area of a conductor we cut resistance (and voltage drop) in half. If we double the length, we double the resistance and double the voltage drop.

A number 1 AWG copper wire has an effective diameter of about 0.3 inches. Area of a circle is pi*r squared. This wire would have a cross sectional area of about pi*.15*.15 = .071 square inches.

Let's assume a steel body shell is about 16 gauge, or about .06 inches thick. A one foot wide area would have 12* .06 = .72 square inches of cross sectional area. The physical cross section is about ten times larger than the copper wire's cross sectional area.

The resistivity of steel is about 15 ohms per 10-6 cm.  The resistivity of copper is 1.7 ohms per 10-6 cm. We can reasonably assume steel has about 15/1.7 = 8.8 times the resistance of copper for the same length and same cross sectional area. While the body shell has higher resistivity material, the body also has much greater cross sectional area.

This means a one foot wide length of steel body shell, if that shell is only .06 inches thick, has about 10% less resistance than an equal path length through out copper wire. It's easy to see why a ground path through the car body, which likely is several feet wide and much thicker in many areas, is a small fraction of the resistance of a copper wire.

A four foot wide area of floor pan, just .06 inches in thickness, would have a cross section of about 2.88 square inches. The equivalent copper conductor would have to be 2.88/8.8 = .327 square inches, or a diameter  = 2*  sqrt of A/pi, or .645 inches diameter! Equaling the resistance of a thin 4-foot wide steel floor pan with a copper cable requires a cable larger than 4/0 , and we have not even counted the help from frame rails, rocker panels, or roof paths!



Battery Wiring and Connections

Car manufacturers are careful with wiring and parts. Manufacturers almost always choose parts and wiring for very good reasons:

1.) Safety. It is expensive to damage cars or people

2.) Reliability. It is expensive to warranty many thousands or millions of unreliable products

3.) Cost. They have to meet 1 and 2 and not waste money. They are in business, not in a hobby

Things to Avoid

Alternators have a voltage regulator, either internal or external. The regulator system adjusts alternator voltage by changing the magnetic field level in the alternator. The regulator always tries to maintain a certain voltage, but the voltage for a given field magnetism is entirely dependent on rotor (armature) speed and magnetic field level. No matter what alternator we use, the internal field cannot change instantly. It takes time for the iron inside the alternator to respond to changes in applied current from the regulator, and for the magnetic flux levels to change.  This creates a response lag as the alternator readjusts to load and input shaft speed changes.

Because of this unavoidable response lag, the system depends on a large storage capacity battery to act like a damper or electrical flywheel. The battery absorbs voltage surges until the alternator catches up with the regulator, if the load is abruptly decreased, and the alternator has a power surplus. The battery supplies voltage, if the load suddenly increases, until the alternator catches up with the regulators call for more power. The battery stabilizes the electrical system and prevents spikes and dips.

Without a battery, an alternator's voltage can surge over 100 volts with an abrupt load change. As a matter of fact, removing the battery in a system with a steady electrical load and charging battery can cause a very large voltage surge, because the battery's charging current is removed along with the battery's ability to dampen any voltage surge! I've actually seen headlights burned out from a bad battery connection, let alone more sensitive computers and ignition systems.

Because of this response lag and danger of surges, the battery must never be removed from a running system. The battery must always have a reliable solid connection.

This is the very reason alternators wire directly to bolted battery connections with fuse links, and manufacturers do not use conventional fuses, circuit breakers, relays, or switches between the battery and the electrical system. This is why the normal wire routing is alternator output to battery positive common point, and fuse links are used instead of fuses or breakers. This is why there is never a switch or relay between alternator output and the battery positive common point.

A properly designed OEM basic circuit layout looks like this:

Proper safe battery wiring

The common connection point is where alternator, battery, and loads all join. Notice if any fuse or fuse link opens, the battery remains connected to the load or the alternator. It is impossible for the battery to be accidentally removed with the alternator connected, other than a battery terminal or battery failure.

With almost any automotive electrical system, a very good, reliable, battery to alternator and starter ground connection is critical. Automotive manufacturers almost always have the very heavy battery negative lead directly to the engine block or some very solidly attached major component. This is because alternator charging currents and starter currents, the two most significant current paths, must be kept out of small wiring. High currents must not depend on or pass through unreliable connections. Unreliable connections not only include physical connections we visually recognize as "terrible connections", but also include engine components that are not securely and solidly grounded to the engine block. One example of a poorly grounded part might be a manifold, which floats from the heads and block by gaskets. The only ground path to the block is through the manifold bolts, which can become corroded or insulated with thread sealers.

Loctite and other thread locking compounds make pretty good insulators. I've seen thread locker compound completely isolate bolts or screws from the components they thread into. Even when physically tight, most thread locking and some thread sealing compounds can electrically insulate bolts and screws. The general rule is if a compound penetrates and hardens, it can electrically insulate an otherwise tight connection. Do not rely on connections or rely on ground current paths that might run through penetrating thread locking compounds, like Loctite.

On the other hand, silicone grease and anti-seize compounds will actually preserve electrical connections. They keep air and moisture away from the bare metal areas that physically touch.

Abnormally heavy loads, such as heavy-duty cooling fans, exceptionally large audio amplifiers, or two-way radio systems, must also have reliable ground paths to or from the battery negative. Unless a heavy external load is ground isolated, the external device should not attach directly to the battery heavy cable. The battery should be grounded to the vehicle chassis, and external devices with negative leads connected to chassis paths should have negative grounds connected solidly to the vehicle chassis.

With distances more than a few feet, the chassis path through any steel unibody vehicle is far less resistance than any practical size of copper cable, and any common frame. Use the chassis for long grounds, such as from a rear mounted battery to the front. The only requirement is a good connection to the unified sheet metal.

Be cautious in frame-type vehicles, because some use rubber frame-to-body isolators to reduce road noise. See my F250 for an example of an isolated body shell in a frame-type vehicle.

Battery currents and other high currents to alternators or high current loads (like starters or cooling fans) must never be allowed to flow across high resistance ground paths. Allowing high currents to flow across poor connections causes service related issues, like slow engine cranking and unreliable accessory operation. Poor ground connections can permanently damage expensive parts, such as wiring harnesses and electronic engine control systems.

Front Battery System

Battery mounted in front engine grounding



Battery negative grounded to vehicle chassis through smaller, but secure, secondary lead for accessory and light currents. Never omit this battery-to-chassis wire!

Battery cable negative heavy lead runs directly to block or to a large metal-to-metal contact major engine component (not insulated by gaskets). Never ground the very heavy high-current lead to vehicle chassis with front mount batteries.  Always ground the heavy lead to the block, bell housing bolt, or some other solidly-connected (no insulating gaskets) engine component.

The rear-of-engine to firewall ground braid, like the hood ground people often remove, is primarily for electrical noise reduction. This ground lead can be a smaller braid to an unused head accessory mounting hole, or to a bell housing bolt. Never put ground lugs under a tension-critical bolt, like a head bolt. Lugs are too soft and will yield, causing unreliable bolt torque.

The alternator grounds to the block or head through alternator brackets. The alternator is somewhat less critical than the starter current grounding point, because peak alternator current is less than peak battery current.







Always remember, battery currents can be as large as several hundred amperes. We do not want even a fraction of that getting into bearings or into electronic engine controls. Front-mount batteries should always use a very heavy negative cable to the engine block, or to some other engine part like a bell housing that is reliably and securely bolted to the block. The large negative cable is the primary path for starter currents and alternator battery-charging currents. While generally not the first choice, unused head holes are usually OK for these connections.

A critical path that is often ignored, or accidentally removed, is from the battery negative or engine block to the vehicle chassis.  There must be a reliable battery negative-post to chassis connection. Without a reliable connection, the vehicle chassis can electrically connect  to the block through engine and transmission bearings. This can not only damage bearings through arc pitting of bearing surfaces, it can also cause intermittent or fluctuating voltages to appear in critical or sensitive vehicle electronic systems.

Electrical potential difference between the block and vehicle chassis will often show as voltage impressed upon ground leads of electronic controls and sensors. Even a small voltage difference between the engine block and vehicle chassis can change sensor readings at the EEC.

The battery-negative to chassis connection for a front mounted battery only needs to be 50-100 ampere size. This is because, with a heavy battery ground cable to the block, starter current and charging current does not pass through the vehicle chassis. The small battery-to-ground connection runs accessories that return through the body shell to the battery and alternator. These accessories include lights, electric motors, audio equipment, gauges, and electric pumps. These shell currents normally amount to less than 40 amperes.

Some time before I purchased my used 1989 Mustang, someone replaced the battery cables. They neglected to use a two-wire negative cable terminal with the smaller chassis ground wire. To repair the missing ground in the front mounted battery situation, I soldered flexible braid to deep lugs (McMaster-Carr is a good source).

Heatshrink sleeves reduce flexing at the connection points, preventing fatigue failures. The connections are cleaned, and then coated with pure clear silicon grease (tune up grease or dielectric compound) in contact areas. The grease keeps water and air away from pressure connections, keeping them clean.

Battery front mount grounding Mustang



The very thick, black, negative battery post lead goes directly to the engine block. This is the lead that carries alternator and starter currents. These currents can be in the hundreds of amperes.

All vehicle accessory power, including lights, radio, ignition, fan motors, wipers, and computer typically run negative from the vehicle chassis. The negative battery post small lead should be securely grounded to a solid piece of sheet metal that is welded to the main vehicle chassis structure. In this example the radiator support works.  Whoever replaced battery cables in my 1989 Mustang never grounded the battery negative to the chassis. Don't make that mistake! Working does not mean it is right!



Battery front mounted ground lead



Without this critical ground from the battery to the chassis, voltages to the computer and other important electrical devices become unreliable. To be sure the engine block stays at chassis, I also have a wide ground braid on the rear of the head to the firewall. This makes sure engine sensors are at the same ground potential as the computer chassis grounds.

Welded large panels anywhere in the chassis of a unibody vehicle have very low resistance. Despite what some people might claim, the unibody chassis makes a great low resistance ground path all through the vehicle. You will probably never do better than the body shell for connection path resistance.

My trunk mounted battery:

Trunk mounted batteries in metal chassis vehicles are a very special wiring situation. With a rear-mounted battery, we have to get the high starting and charging currents to the engine block with minimum resistance and high current capacity. Do not run a ground wire to the battery unless the vehicle chassis is an insulating material, like fiberglass. The vehicle chassis should be the ground lead. The battery should be high-current grounded to the vehicle chassis with short direct leads. The engine block should be high-current grounded to the vehicle chassis.

This is how I handled my car, and it starts in any weather at any temperature just as a front battery would.

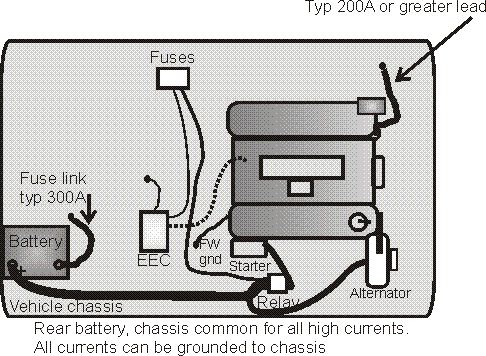

trunk mounted battery



The engine block is grounded to the chassis through a heavy "starter size" cable.

The battery should be grounded through a fuse link or fusible braid that fails at less current than the main battery feed cable. This way, if the positive cable shorts to the chassis, the negative lead disconnects the battery. Nothing else connects to the negative post.

Alternator output, 12V fuse block feed, and battery share a secure common connection point.











To increase traction, and to have more room and less weight in the front, my battery was relocated to the trunk. I mounted the battery as far back to the right rear as possible, because that tire "lifts" from drive shaft torque and has the least launch weight. The further back and higher the battery, the more weight transfers. The extra mounting space allowed use of a large, deep-cycle, marine battery. I selected a deep-cycle battery because normal sealed lead-acid batteries permanently lose charge capacity with any excessive discharge. A single deep discharge can ruin a sealed lead-acid battery's ability to store charge. Deep cycle or deep discharge batteries are much more immune to accidental or intentional deep discharge cycles.



Trunk mounted battery homemade box



Prior to clamping ALL bolted or clamped connections (except solder points) are cleaned and given a light coating of clear silicon dielectric grease. This grease is also called "electrical tune-up grease". Anti-seize compounds or Noalox also work to prevent corrosion, and preserve electrical connections. Be sure the grease you use is compatible with the metals.

Battery hot wire is 2/0 ("two-ought") welding cable, about 15-feet long. Welding cable has a tough heat-resistant jacket, and is extremely  flexible for its size. This cable runs directly to the starter relay battery post on the starter. The lug at the starter, since it is exposed to water and dirt, is soldered on. The lug is close fitted to the welding cable. I heat the lug with a butane torch, and flow rosin core solder into the lug, totally flooding the connection with solder. To keep the cable's insulation from melting during soldering, I wrap the cable insulation with a wet rag.



Wiring up front can be a little tricky. My Mustang wires the car like this:

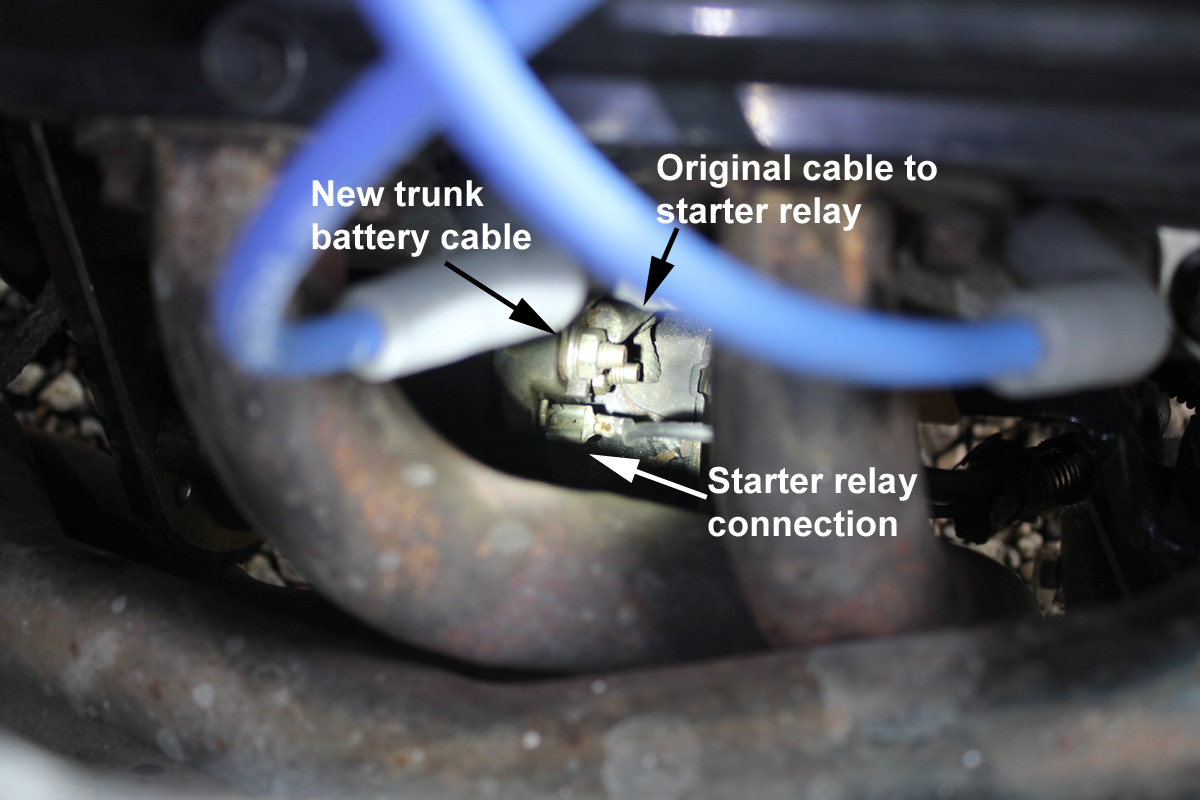

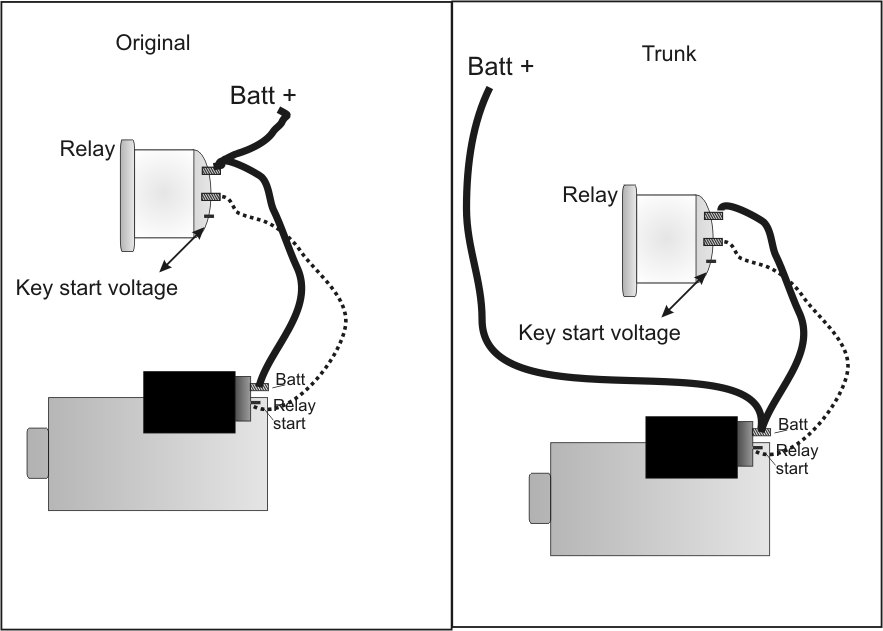

Starter wiring trunck battery



Starter connections

Starter connections trunk mount battery



There are two basic types of starters:

One starter type has an external solenoid with two contacts. A smaller terminal connects to the solenoid activation coil. The second terminal is a large stud. The stud connects to a very high current contact. Ignition key power, often through a start relay which saves wear and tear on the key contacts, engages the starter solenoid. The solenoid mechanically moves the starter drive into the flywheel. As the drive approaches full gear engagement, a very high current contact in the solenoid system connects the large 12 volt battery lead to the motor winding.

Another starter type has a single stud. This starter type lacks an internal contact for battery power. The stud is permanently connected to the motor run winding. This type of starter engages the starter drive as soon as 12 volts is applied to the power stud.



The 89 LX uses a starter with an external solenoid system, and a start relay. This system requires two wires to the starter. One wire is a very large high current wire to run the starter motor, perhaps around AWG 2 size. This wire bolts to a high current stud on the starter.

The other starter wire is much smaller (it has a push on spade lug), since this wire only has to run the solenoid winding. This wire is probably around AWG 10 size.

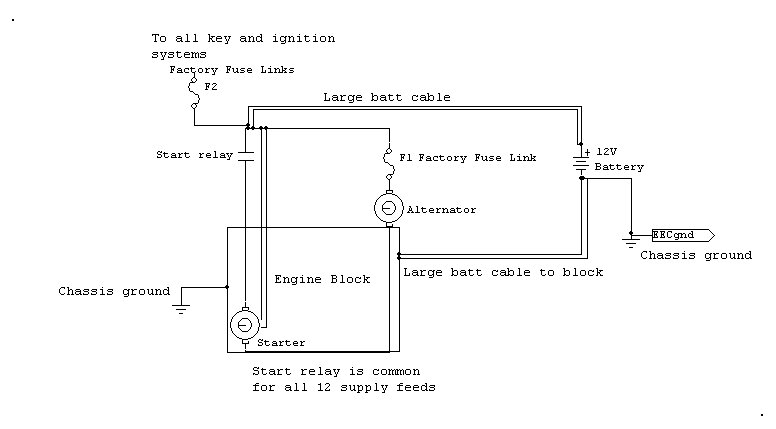

My Mustang's factory circuit looked like this:

Since the starter had a large gauge feed from the battery common point to the starter, and since my battery is on the PS rear, I simply back fed the battery from the starter solenoid. This makes the feed wire from the rear to the starter high current post very short, ensuring maximum voltage to the starter.  If it did not have this starter type, I would have had to run the rear battery wire directly to the start relay post.

The old, heavy, starter feed wire from the battery side of the start relay is now shared with the large lead from the rear battery at the starter solenoid post, and the original starter feed wire now back-feeds the electrical system. The smaller wire with push on lug, as was used originally, runs the starter solenoid coil. It is switched 12 volts from the start relay.

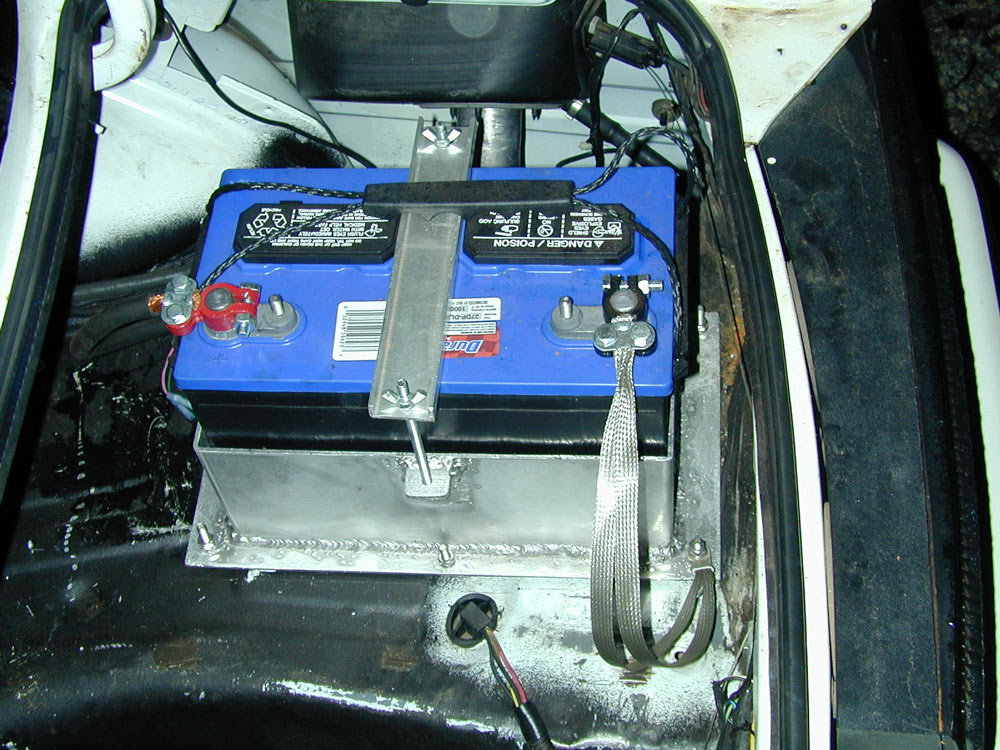

Picture Below:

Battery ground straps are 3/4 wide by 1/16th inch thick tinned strap with carry current rating of 150 amperes. Two equal lengths are run in parallel. These straps have low enough resistance to not drop excessive battery voltage. They do not heat under normal conditions, but will act as a fuse if the welding cable should ever short to the vehicle chassis (such as in an accident). The bottom lug is crimped and soldered. The battery post connection only crushed by the battery terminal cable clamp. Some sort of reliable fusing is mandatory for fire protection. The fuse links must melt before the 2/0 welding cable melts, and must melt before the battery significantly heats or melts.

The battery box is homemade. I cut, bent, and welded it here after an unsuccessful job (it leaked) done by a local welder. This box is water tight aluminum, and it is held down by six 1/4-20 stainless screws. Stainless screws with stainless star washers (to bite into the metal) sandwich the vehicle chassis. They are nutted to the trunk floor metal, so they act as studs. They are also coated with silicon grease. These "studs" hold the box and also provide the ground connection. This creates six parallel ground connections to the vehicle chassis. A sealed plastic box fits over the battery and vents outside the car to a low-pressure area, preventing hydrogen gas accumulation in the trunk.



mount battery over right wheel back by bumper





The battery is a large heavy Marine deep-cycle battery. The battery is mounted on the right tire side, mounted as high as possible, and positioned back as far as possible to place maximum weight on the right rear tire. This caused a significant increase in traction with the street radial tires. This lead-acid deep cycle battery was selected because it has a very low internal resistance. Standard batteries lose ability to store charge if allowed to discharge below 12.6 volts. One deep discharge cycle can ruin some regular batteries. A deep cycle will not lose charge storage capacity when allowed to drop below 12.6 volts.



This is how I just did a 1994 Mustang the same way as my 1989. This is the trunk floor hole pattern. Notice we wire brushed the area around the holes until the galvanizing shows.

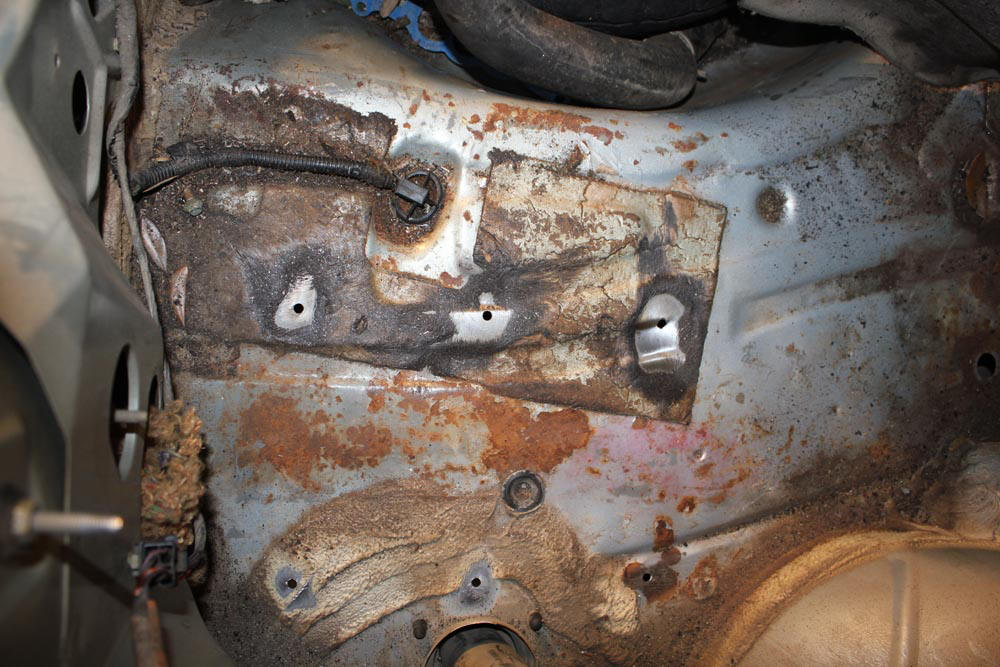

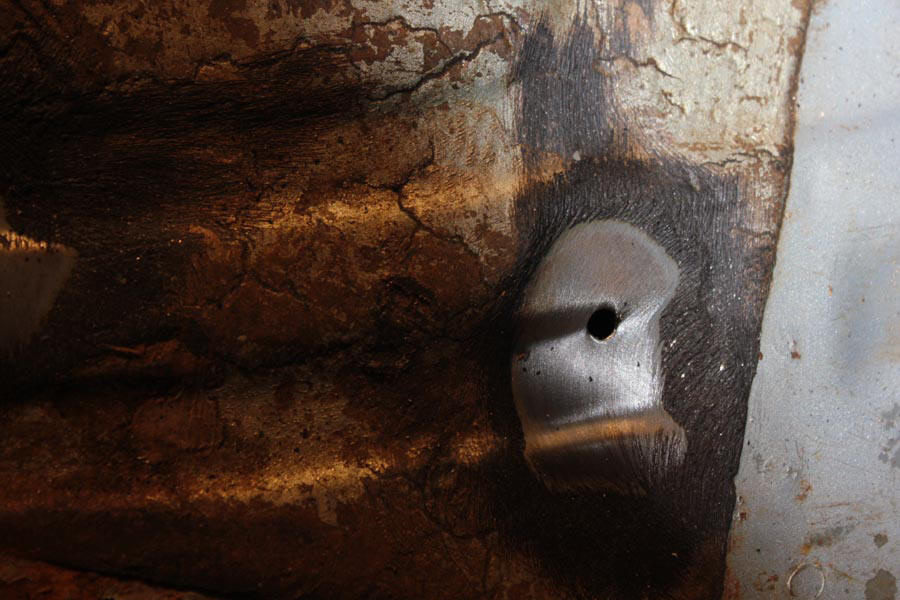

Close up of a hole in the 1994:



The starter and power wires prepared with protective sleeving and lugs for the 1994 ready to fit the starter terminal. I soldered the lugs on:

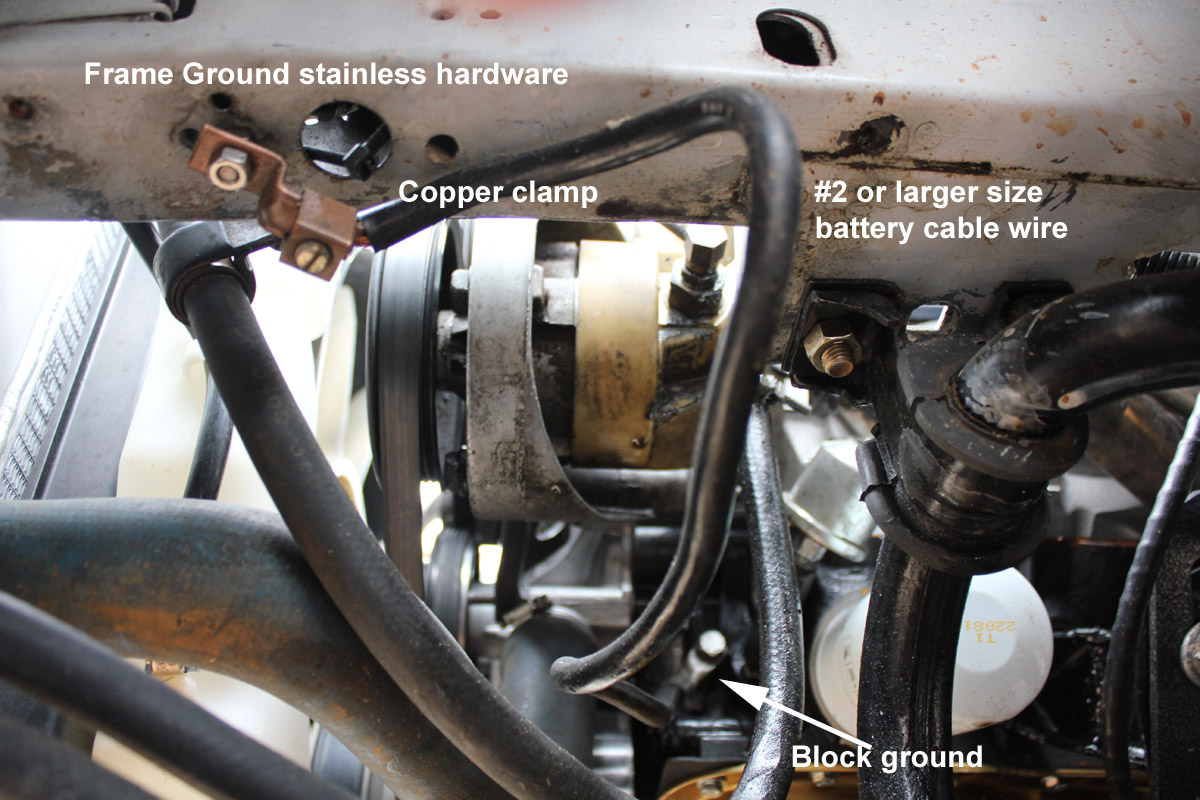

Ground engine block to chassis frame ground Mustang



I cut the old battery negative lead and added a good high-current wire terminal clamp for the high current ground connection. I used a handy copper compression lug for metal compatibility from the copper battery lead to the lug, although a soldered lug like on the starter would have probably been better. I coated all connection points with silicon dielectric grease. The actual body connection is through a 5/16 stainless bolt with a stainless steel tooth star washer directly against the sheet metal on the dry side, a stainless spring washer on the bolt head, all buffered by stainless flat washers. There is grease between all layers to seal out moisture.

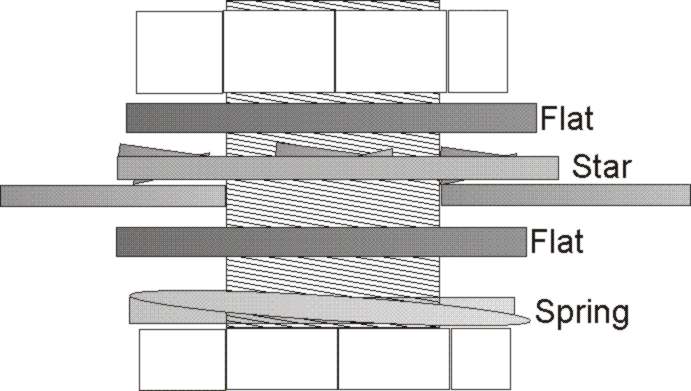

This stack forms a tightly-connected stud for connections to sheet metal. A second nut with spring or split-ring tensioning lock washer and stainless flat washers holds and buffers the copper clamp or lug, preventing direct contact between copper and the galvanized steel car body. This area was also cleaned and coated with dielectric grease before bolting. This is the proper way to do a ground stud on sheet metal.

Use dielectric grease on all electrical joints, and between sheet metal and any washers. Dielectric grease will keep moisture out and preserve the connections.

Bolt stack









Drag Race Legal Battery

As a personal opinion, I think the NHRA and racers need to work more on electrical, nitrous, and fuel safety. There have been several incidents within the last year of preventable deaths or severe injuries. Cars today have become unbelievably fast. My street 1989 Mustang LX, even with the small turbo engine and mufflers, goes well over 100 MPH in the 1/8th mile. With that speed comes increased danger.

My personal rules are:

1.) everything has to be properly fused at the voltage source end of any wires

2.) no fuel or nitrous inside the passenger area

3.) no high current wiring in the passenger area

  4.) firewalls between fuel and passenger compartment and between engine and passenger compartment

5.) automatic fuel shutoff in a collision

6.) ignition key kills all switched power

7.) I always wear a fire suit

One of NHRA and IHRA rules  deals with a rear battery cutoff switch. While generally poorly written and conceived, it is still a rule. This how I meet what seems to be that rule's intent. Many of the things I do are not required by rules, although I think they should be.

For performance reasons, my installation places the battery as far back as possible. This is a heavy deep cycle Exide battery. Note the battery length is parallel to the rear. This puts the cell plates at right angles to normal G forces. This will slightly reduce long term flexing and stress on battery plates plus, in a wreck, the load force would be distributed over the largest battery surface.

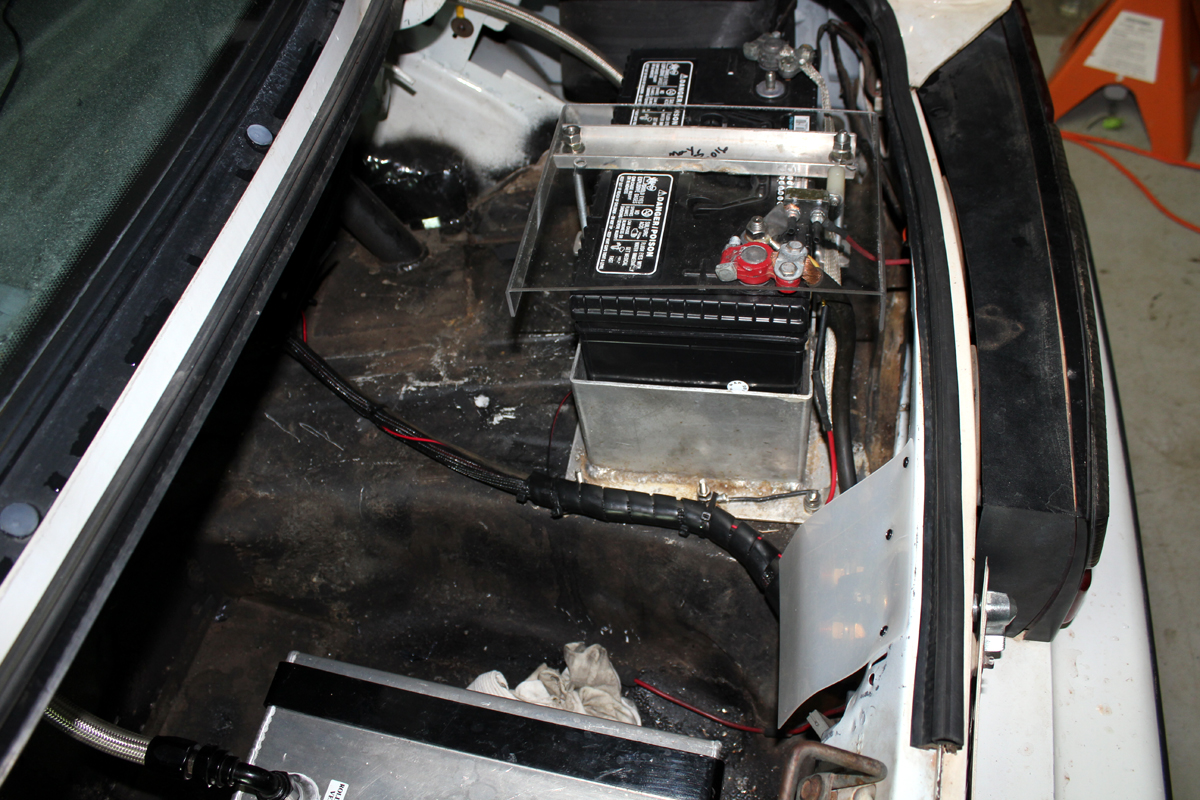

NHRA IHRA legal trunk battery

The highlights of my system are:

1.) Battery and switch positives are covered to reduce chances of accidental shorts to ground

2.) Battery tie down is through the floor to a plate

3.) Battery is positioned sideways to normal G-forces, and as far to the rear as possible for traction

4.) Battery is retained in a water tight aluminum box to catch acid leaks

5.) The battery box is internally padded with rubber

6.) The battery box has multiple ground bolts that also hold the box in place. These bolts and the box form a low resistance distributed ground

7.) The battery is catastrophic fused by the negative strapping. Fusing current is approximately 350 amperes

8.) Leads are protective sleeved and secured from vibration

9.) Low current "keep alive" leads are fused with low amperage fuses

10.) A main pole kills the high current feed, while the fuel pump and alternator field run through a second pole. This kills the engine, alternator, and all electrical except low current fused keep alive memory

11.) The fuel pump feed is fused with a 50-ampere auto reset breaker

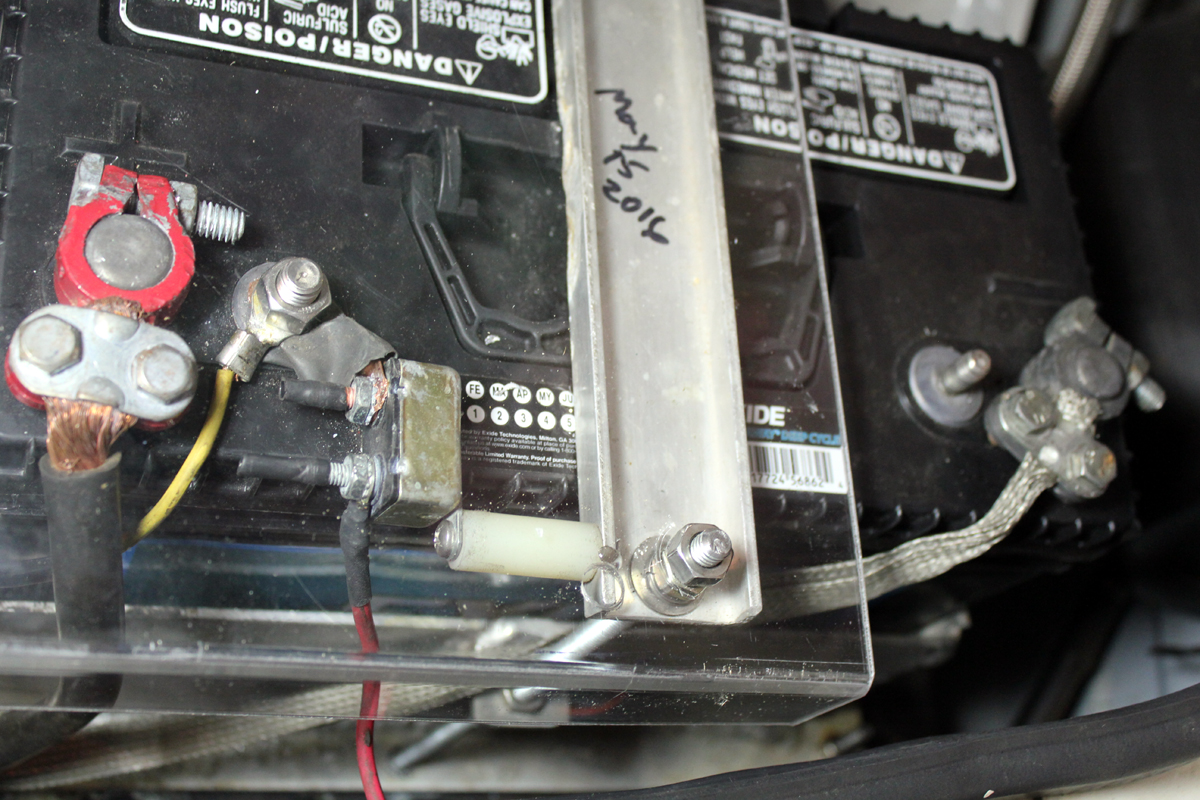

I write the battery install date on the hold down.

Battery 1989 LX White Lightning

In addition I have a rollover fuel valve and a fuel pump power impact sensor. In the event of an impact, fuel pump power is cut. No fuel or high current lines exist inside the passenger compartment.

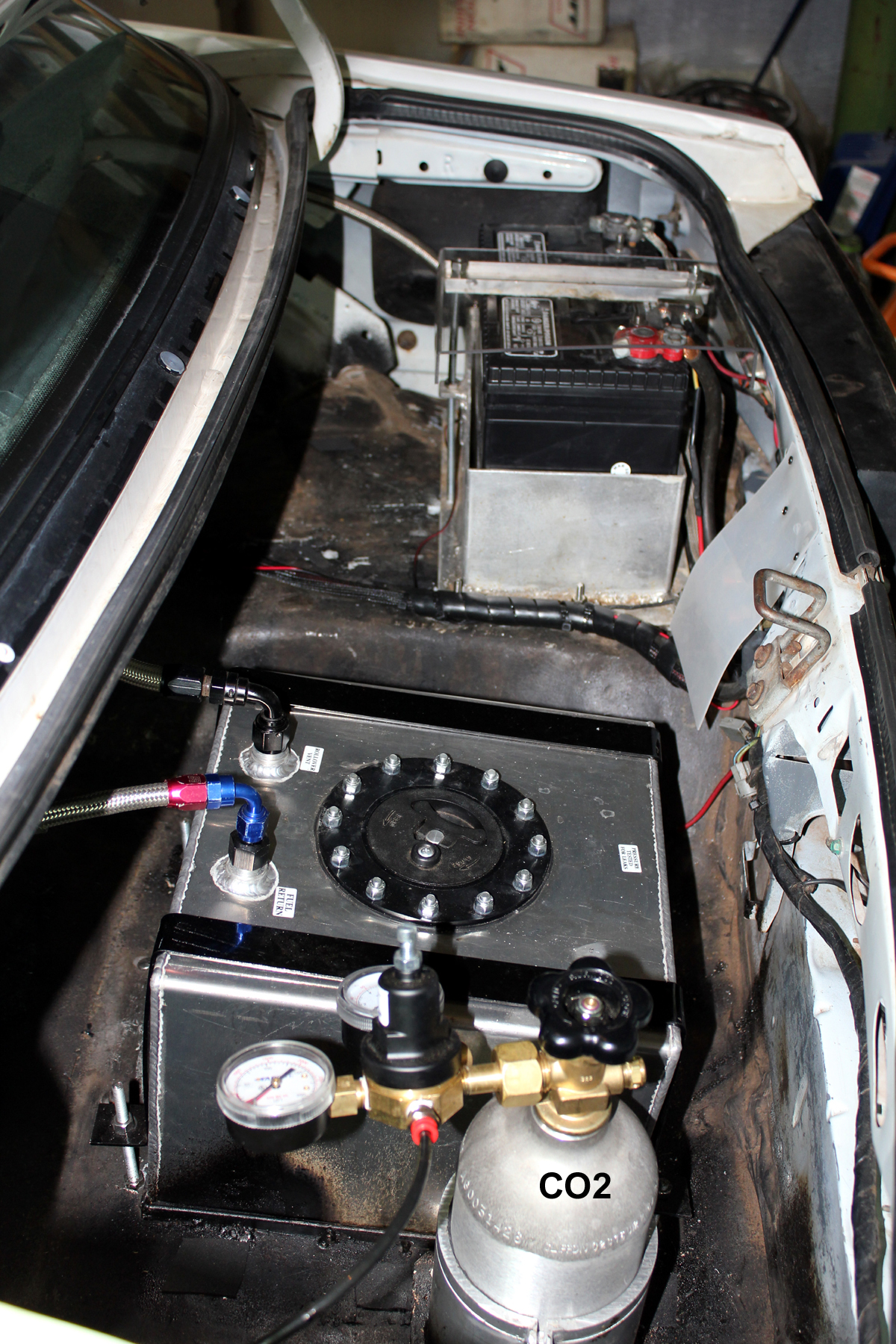

White Lightning trunk view

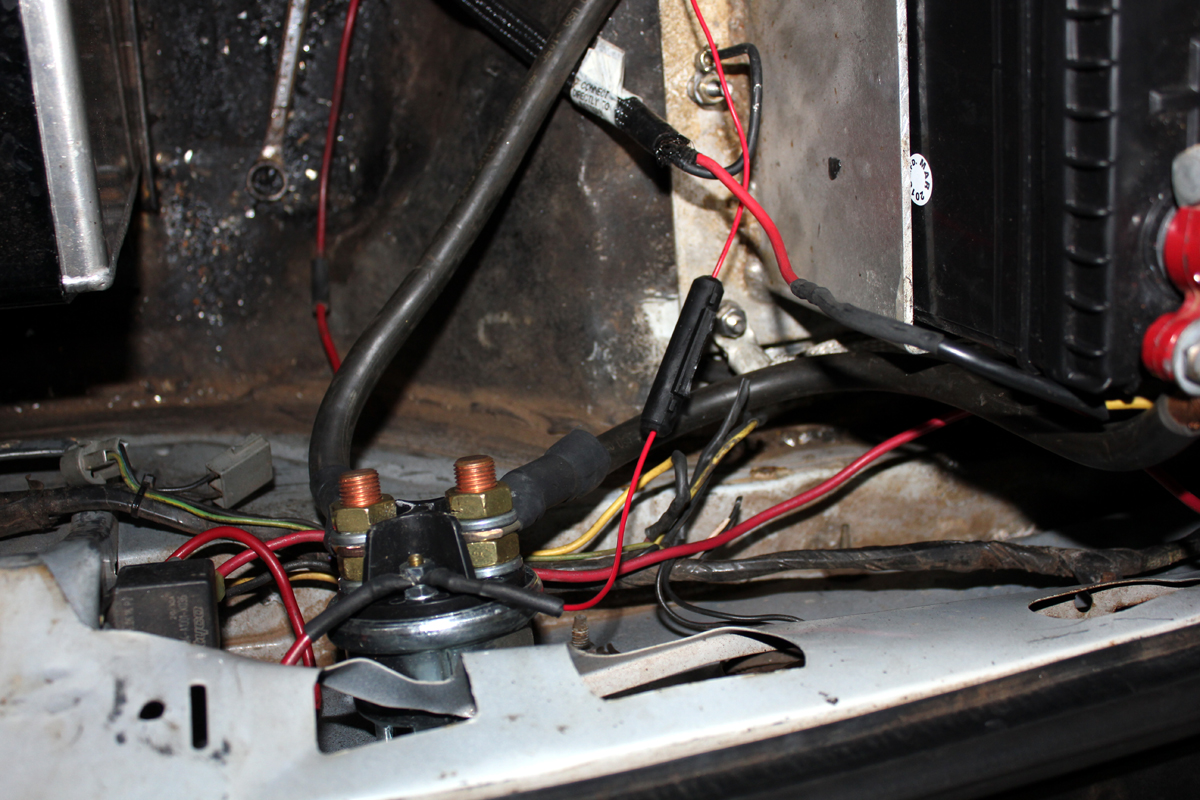

Uncovered view before wire lacing:

Battery trunk wiring
